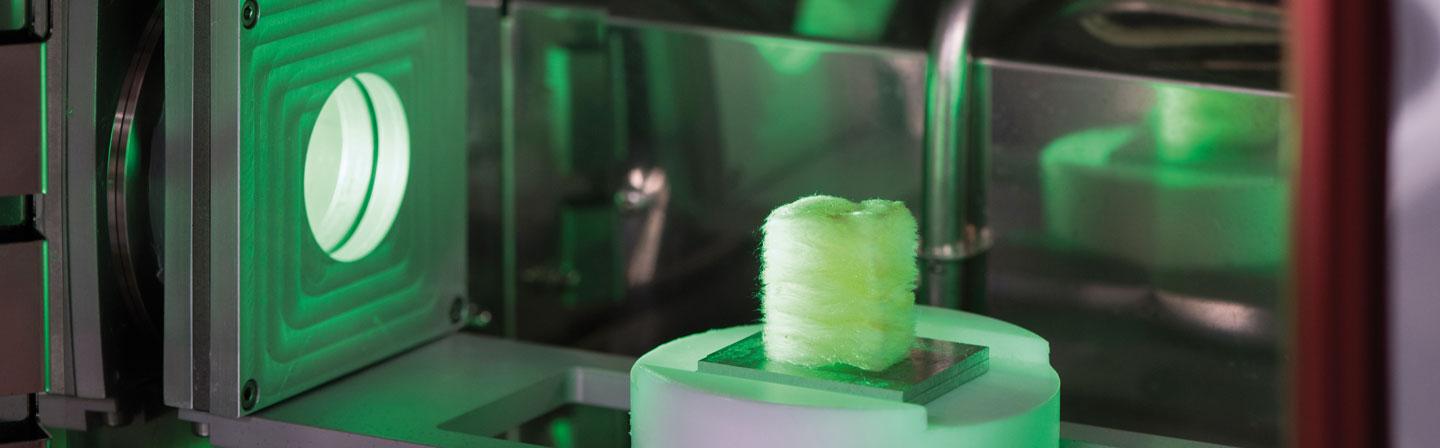

© Knud Dobberke for Fraunhofer ISC
Klimatom: Climatic chamber for in-situ characterization of materials under a controlled climate

© Knud Dobberke for Fraunhofer ISC

KLIMATOM – Measuring materials under climate conditions

Materials analysis under defined climate conditions with KLIMATOM

Video: Youtube

Privacy warning

With the click on the play button an external video from www.youtube.com is loaded and started. Your data is possible transferred and stored to third party. Do not start the video if you disagree. Find more about the youtube privacy statement under the following link: https://policies.google.com/privacy

In-situ characterization of materials under climate change conditions

The Fraunhofer ISC´s Center of Device Development CeDeD has evolved a new analytical device for in-situ characterization of materials and material combinations with climate change conditions: KLIMATOM. In a unique way the KLIMATOM enables a non-contact and non-destructive contour analysis of different materials, whereby the shadow image of the sample is investigated.
Furthermore, it is possible to analyze in-situ material changes of transparent and translucent surfaces using transmitted light. In this occasion dimensional changes within defined temperature and humidity ranges can be measured and images in high-resolution CMOS technology can be obtained.

General benefit of KLIMATOM

  • On-line investigation of heat and/or cold effects
  • In-situ characterization of expansion, swelling and bending
  • On-line characterization of damage caused by extreme
    climatic conditions
  • Analysis of material combinations with different expansion coefficients
  • Determination of moisture sensitivity
  • Investigation of crystallization processes (e. g. precipitation in aqueous solutions)


Benefit of KLIMATOM for plastics

  • On-line characterization of plastics under changing and extreme climatic conditions
  • Analysis of plastic composites combining materials with different expansion coefficients
  • In-situ alteration and on-line comparison of separate plastic components


Benefit of KLIMATOM for building materials

  • Characterization of swelling and shrinking behavior of insulation materials, concrete and composite materials
  • Analysis of bending fracture and deflection under climatic conditions
  • Climatic stability test of insulation materials depending on the binder content
  • Examination of the functionality of different surface finishing processes


Benefit of KLIMATOM for coatings

  • Surface characterization of coatings for quality control of layer application and functionality (e. g. anti-fog, anti-ice, anti-dust)
  • Analysis of wetting behavior
  • Delamination of varnish systems under influence of temperature and/or humidity

Technical Data of KLIMATOM

Temperature range: -40 °C to +160 °C
Humidity range: 30 % to 95 % r.h.
CMOS camera system: resolution of 0.3 μm and 20 images per second
Lighting: 100 W LED array (wavelength selective)
Implemented measurement algorithm
Analysis/evaluation of height, width, area and volume
